Overview
The GOBEACTOOL Cermet Cold Saw Blade (Standard Series) offers the optimal blend of hardness and cost-efficiency for metal processing tasks. As the fundamental upgrade from traditional High-Speed Steel (HSS) and certain Carbide blades, the Cermet material delivers inherent superior wear resistance and thermal stability. This blade is engineered for manufacturers prioritizing precision, exceptional tool life, and significant Total Cost of Ownership (TCO) reduction in medium-to-high volume applications.
Ideal Application Suitability
The Cermet Cold Saw Blade is the robust, high-performance solution for general metal cutting needs:
-
Metal Fabrication Shops: Cutting various profiles and structural steel with high precision.
-
Tube & Pipe Manufacturing: Cutting standard wall thickness pipes and tubes.
-
Bar Stock Processing: Efficient cutting of medium-sized solid bars (Carbon and Mild Steel).
Key Technical Features
| Feature Category | GOBEACTOOL Advantage | Performance Benefit |
| 1. Premium Cermet Tip | High-Density, Fine-Grain Formulation: Utilizing a customized Titanium Carbide (TiC) and Nickel/Cobalt binder matrix. | Exceptional Wear Resistance: Maintains a sharp cutting edge longer than HSS, drastically increasing the cuts per blade and reducing tool changes. |
| 2. Precise Tip Brazing | High-Strength Induction Brazing: Ensures a uniform, durable bond between the Cermet tip and the steel base plate. | Maximum Durability: Reliable performance under sustained load, minimizing the risk of tip loss, especially during critical cutting cycles. |
| 3. Optimized Geometry | Application-Specific Tooth Grind: Tooth profiles (e.g., Triple Chip Grind, Pin-Hole Geometry) are precision-ground to suit the target material (solid, tube, or profile). | Clean Surface Finish: Delivers consistent, high-quality, burr-reduced cuts, making parts ready for subsequent operations with minimal rework. |
| 4. Stress-Relieved Core | Laser-Cut Base Plate: The core is subjected to proprietary stress-relief processes during manufacturing. | Dimensional Stability: Ensures maximum blade flatness and minimal runout, essential for achieving tight cutting tolerances. |

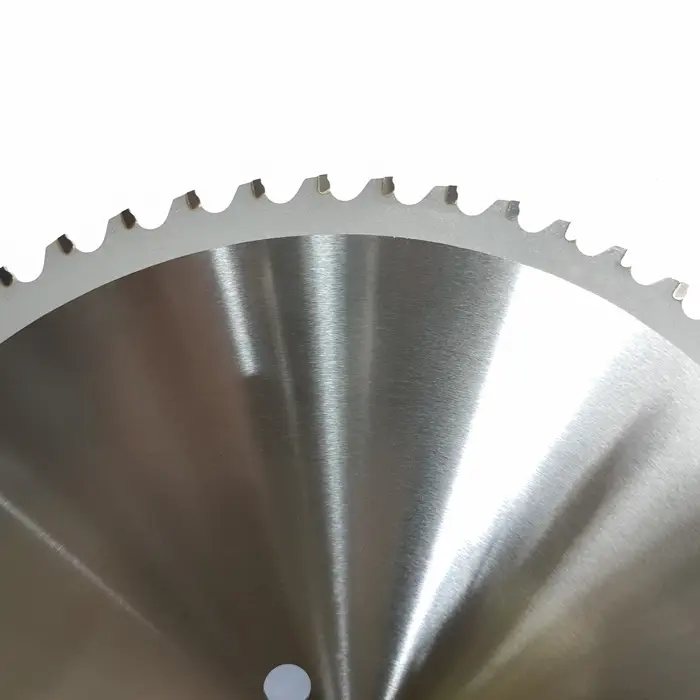

Cermet metal cutting cold saw
Features:Cutting medium and low carbon steel, long life, perfect precision.
Application parameters:
V=100-130m/min
SZ=0.05-0.1mm
